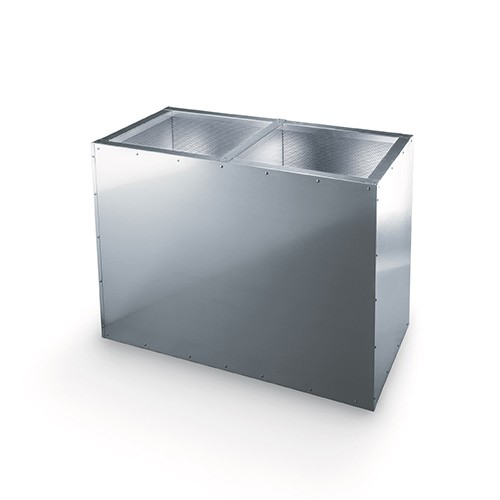

EKO-TD
Roof Inlet Combined Roof Hood
Used with combined intake and exhaust air hoods with simultaneous supply and exhaust air.
Product Information
The roof inlet EKO-TD is designed for the installation of roof hoods and fans. As standard, EKO-TD features 50 mm insulation on the inside corresponding to fire class EI30. Alternatively, the roof inlet EKO-TD can be manufactured with 100 mm insulation corresponding to fire class EI60. Additionally, EKO-TD comes with an internal surface featuring perforated sheet steel as standard.
Features
- Sizes range from 10 to 50.
- 50 mm insulation on the inside is standard, corresponding to Fire class EI30 with an internal perforated sheet.
- Can be supplied with 100 mm internal insulation corresponding to Fire class EI60.
- Length is standard at 800 mm (customizable).
- The roof inlet can be supplemented with sound reduction baffles from size 13 onwards.
- Can be manufactured upon request in other dimensions, lengths, and material designs.
- Two attached scales are included for adapting to roof pitch.
- Available in MagiCAD.
