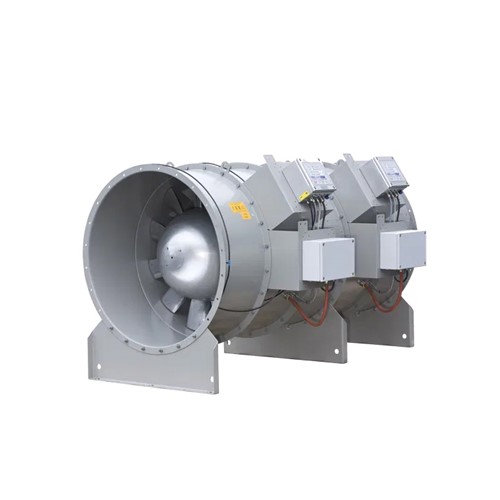

EKO-BVZAXN 9/56
Axial Smoke Exhaust Fan
For conveying smoke gases of temperature classes F200, F300, and F400.
Product Information
For installation inside and outside of the fire zone, suitable for free inlet/outlet or for pipeline installation in a horizontal and vertical style. It has a dual smoke extract and ventilation function. Based on two fans connected in series, suitable for extracting smoke from underground car parks and extract air (66% redundancy in emergency mode).
For detailed technical data and performance specifications, please use the Product Configurator X-fans.
Features
- For installation in the fire zone without additional cooling.
- Low-noise operation due to low circumferential speeds and high pressure coefficients.
- Optimised outlet guide vanes to increase the pressure coefficients.
- Extensive adjustments to the relevant operating point and subsequent motor rating corrections can be made by steplessly adjusting the impeller blades without any need to disassemble the impeller (the impeller blades cannot be adjusted in the case of the F400 temperature class).
- The desired operating point is optimised to achieve the best possible efficiency using a variable number of blades (6 / 9 / 12).
- 15 sizes
- Impeller’s nominal diameter 315 to 1,600 mm
- Volume flow rate max. 230,000 m³/h
- Total pressure max. 3,150 Pa
- Casing available in all RAL colours
