EKO-UG-3-0
Smoke Detector for Duct Mounting - Optical Functionality

Product Information

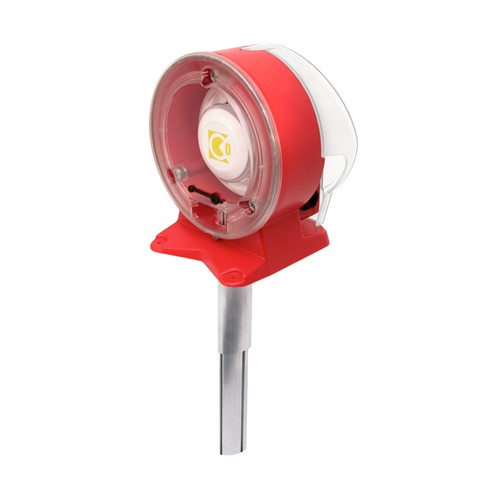

Uniguard has been developed to detect smoke in ventilation ducts and combines a smoke detector and an adaptor system where both venturi pipe and housing are specially designed for optimum airflow through the smoke detector.

The Uniguard detector is designed to be used in ventilation systems with air velocities of 0,2m/s to 20m/s. The length of the venturi pipe shall be chosen based upon how wide the ventilation duct is. The venturi pipes are available in 3 lengths; 0,6, 1,5 and 2,8 m. When the ventilation duct is wider than 0,6 m (dia), the venturi pipe should penetrate the whole duct.
