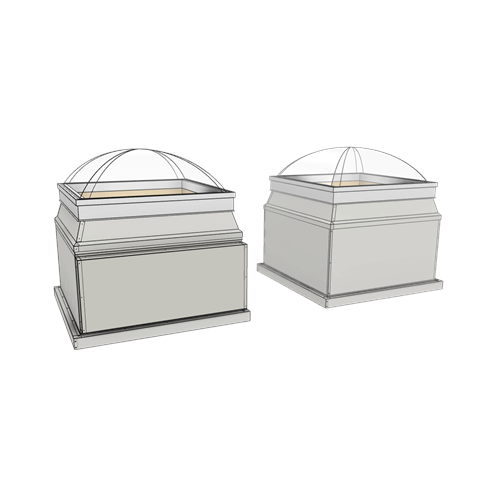

EKO-OTV
Smoke Extraction & Pressure Control Unit
A CE-marked Acrylic smoke hatch with med 4-layer curved Acrylic.
Product Information

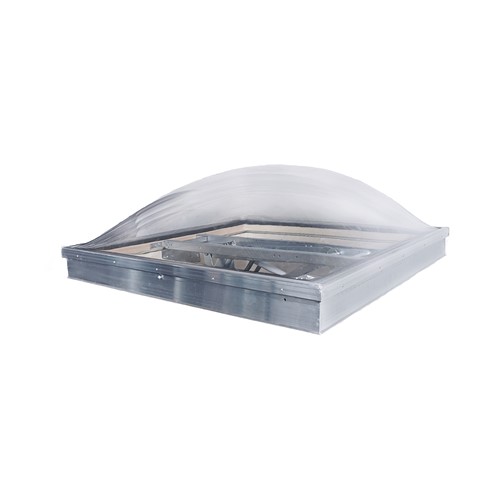

EKO-OTV is equipped with a mandatory smoke vent, which is a CE‑marked acrylic smoke vent featuring a four‑layer clear curved acrylic dome. The smoke hatch is delivered with an insulated frame (minimum height = 300 mm), and has a U-value of 1.5 W/m²°C. The smoke hatch is equipped with an opening unit for 0-160° opening with an actuator for 24/48 V. The effective opening area is 0.62 m², and the opening speed is a maximum of 60 seconds.
- Adapted for Pressure Relief Damper EKO-JVH and Roof Duct EKO-T
- Equipped with a CE‑marked smoke vent complete with an opening system for 0–160° opening, fitted with a 24/48 V actuator in accordance with EN 12101‑2
