EKO-SRB1-R
Regulating Fire Damper E60 S
A regulating damper for fire separation of heating, ventilation and air conditioning installations in buildings.
Product Information

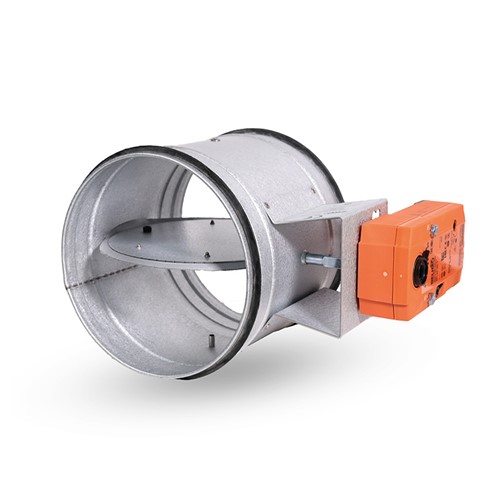

EKO-SRB1-R is a fire damper in class E60-S with modulating actuator. This means the air flow can be adjusted with the damper blade angle 0-100% via input signal 2-10 V. It can also be used as adjustment damper or control damper and have a complete fire function at the same time.
EKO-SRB1-R is in accordance with the harmonised European standard EN 15650:2010. In designs according to associated documents, installation instructions and when the damper is used in combination with smoke detectors and monitoring system, the spread of combustion gases is prevented. No further action against the spread of combustion gases is required.
Features
- Fire class E60S
- Sizes from Ø100 to Ø630 mm
- Installation in ducts
- Prefitted safety actuator 24V
- Easy regulation of the air flow
- CE-marked
- P-marked
- Available in MagiCAD
