EKO-RBE-C
Fire Damper E120 S
Intended for fire sectioning or as protection against the spread of fire and fire gas in ventilation systems
Product Information

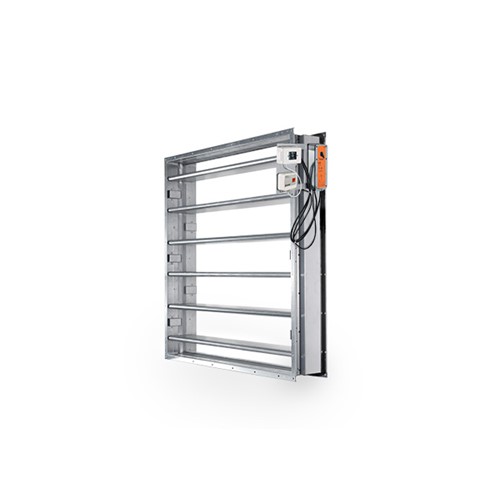

EKO-RBE-C is a CE approved multi-blade damper intended for fire sectioning or as protection against the spread of fire and fire gas in ventilation systems. The damper is equipped with factory-fitted electrical actuator with spring return, end position contacts and thermal sensor.
EKO-RBE-C is supplied as standard in Zinc Magnesium ZM120 (C4) with mounting details in galvanized steel (C2). Alternatively, the damper can be delivered in Zinc Magnesium ZM310 (C5) with mounting details in galvanized steel (C2), or stainless steel with mounting details in EN 1.4016.
Features
- Fire resistance class E30S/ E60S/ E90S/ E120S
- For mounting on a horizontal and vertical duct through wall/ ceiling.
- New unique patent-pending construction
- Sizes from 200x200 to 1200x1200 mm
- The casing conforms air tightness class C up to 750 Pa
- Prefitted safety actuator 24V
- Easy installation
- CE-marked building product according to 2531-CPR-CVC10003
- Available in MagiCAD
