EKO-TME/TSE
Wireless Control and Monitoring System
For automatic monitoring and functional control of fire dampers, smoke dampers, pressure relief dampers, and various types of smoke detectors.
Product Information
The wireless control and monitoring system EKO-TME/TSE is used for automatic monitoring and functional control of various fire dampers, pressure relief dampers with 24V damper motors, and various types of smoke detectors.

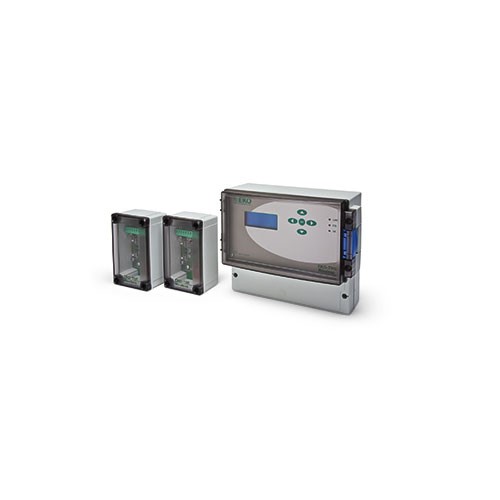

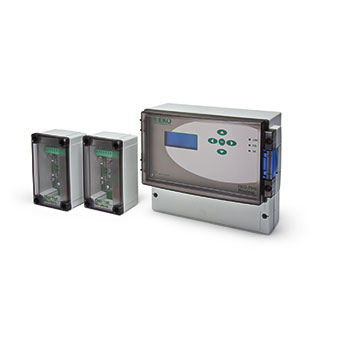

EKO-TME
The central unit operates with a communication unit mounted on or near the damper. The central unit is connected to 230 V and automatically establishes contact with the damper units when the system is commissioned. In case of power failure or communication failure, the damper closes automatically as a safety measure. The system meets the requirements of a modern control and monitoring system and is also available for connection to Modbus networks.
EKO-TSE
EKO-TSE is a slave unit placed at each damper and always collaborates with the central unit EKO-TME, with the ability to connect up to 80 units.
Features
- Wireless functionality eliminates the need for cable routing
- Cost-effective solution
- Automatic monitoring and functional control
- Flexible system for changes
- Simple and fast installation
- Easy project planning
- Modbus communication
- Customized programming for customers
- Support for up to 80 units
- CE marked
