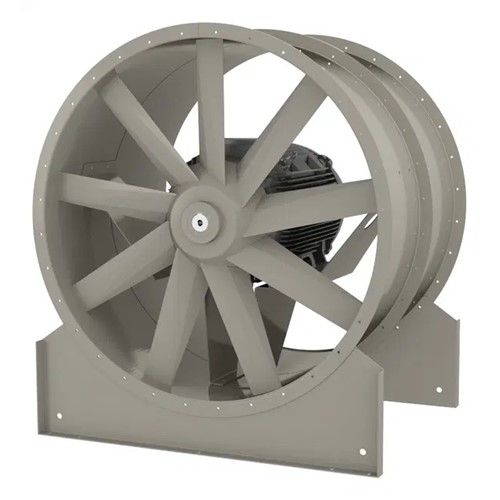

EKO-AXO 9/27
Axial fans with direct drive
Axial fans with direct drive for building ventilation and aeration.
Product Information
Different blade pitch angles are used depending on the size and the desired output; please specify when ordering. Compact size enables installation even when space is tight. Motors can come with thermal contacts or a PTC thermistor.
For detailed technical data and performance specifications, please use the Product Configurator X-fans.
Features
- Suitable in horizontal and vertical style.
- Effect-optimised steel impeller, efficiency up to 74%
- Casing available in all RAL colours
- Also available with acoustic insulation.
- 15 sizes
- Impeller’s nominal Ø 315 to 1,600 mm
- Volume flow rate V. max. 200,000 m3/h
- Total pressure increase pt max. 1,000 Pa
- M-D style: air direction with motor in outlet, impeller assembled directly on the motor shaft.
- Conveying temperatures of up to +130°C possible with special motors (upon request
