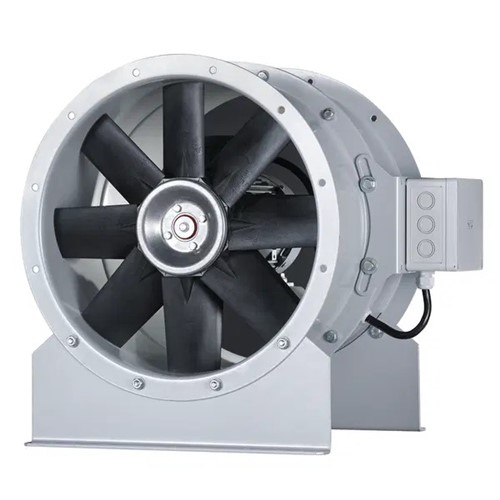

EKO-AXO
Axial fans with direct drive
Product Information
Impellers with a different number of blades are used (5, 6, 8, 9, 10 or 12) depending on the size and the desired output; please specify when ordering. Compact size enables installation even when space is tight.
For detailed technical data and performance specifications, please use the Product Configurator X-fans.
Features
- M-D style: air direction with motor in outlet, with direct drive.
- Suitable in horizontal and vertical style.
- Casing available in all RAL colours
- Also available with acoustic insulation.
- Efficiency up to 68%
- 10 sizes
- Impeller’s nominal Ø 315 to 1,600 mm
- Volume flow rate V max. 250,000 m3/h
- Total pressure increase pt max. 1,800 Pa
- M style with direct drive. Impeller assembled directly on the motor shaft
- Motors can come with thermal contacts or a PTC thermistor
