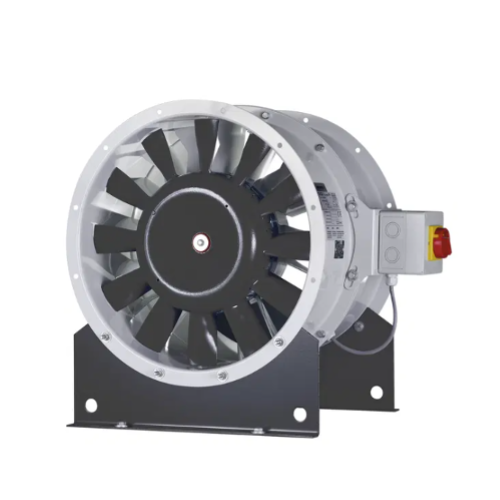

EKO-AXN 6_9_12/56
Axial fans with direct drive
Product Information
Axial fan with direct drive and guide vanes. Stepless adjustment of the impeller blades without dismantling the impeller, allowing extensive adaptation to the operating point and subsequent corrections within the motor performance.
For detailed technical data and performance specifications, please use the Product Configurator X-fans.
Features
- Optimized guide vanes to increase pressure coefficients.
- Low noise operation due to small peripheral speeds resulting from high pressure coefficients.
- 21 sizes available
- Impeller nominal diameter: 250-2500 mm
- Maximum volume flow rate: 400,000 m³/h
- Maximum total pressure increase: 2,600 Pa
- Design M-D: Air direction through motor pushing, with direct drive. Impeller mounted directly on the motor shaft.
- Horizontal and vertical installation both indoors and outdoors possible.
- Corrosion protection category up to C5M available.
- Enclosures available in all RAL colors.
