EKO-JK
Control and Mixing Damper
Designed for use as a mixing damper in ventilation systems.
Product Information

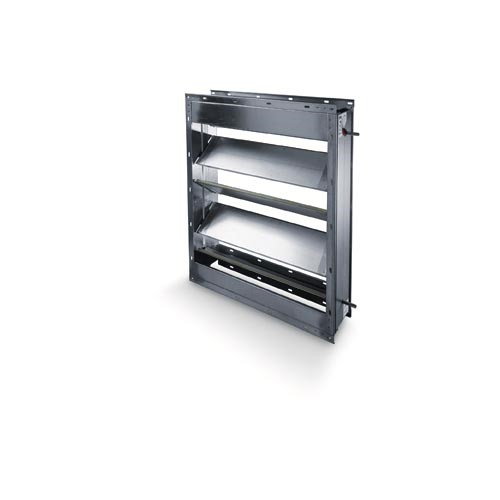

Mixing damper EKO-JK consists of a number of opposing blades which are stored (nylon bushings) in a sheet metal frame. The damper blades are connected via a link system on the outside of the metal frame. The link system is protected by a cover plate.
On dampers from a height of 600 mm, two of the blades are equipped with an extended shaft for connecting control devices. The damper blades are manufactured with a height of 200 mm
Features
- Air tightness classes 2-3
- Pressure classes A-C (Pressure class A is standard)
- Standard sizes from 400x400 to 2000x2000 according to table
- Dampers with other dimensions can be manufactured upon request
- Dampers are only supplied with a flange connection
- Maximum air temperature for standard dampers is 100°C. Dampers for higher temperatures can be provided.
- Complete with brackets intended for actuators
- Available in MagiCad.
