EKOVENT is launching new fire-/ smoke damper with low weight and low pressure drops!

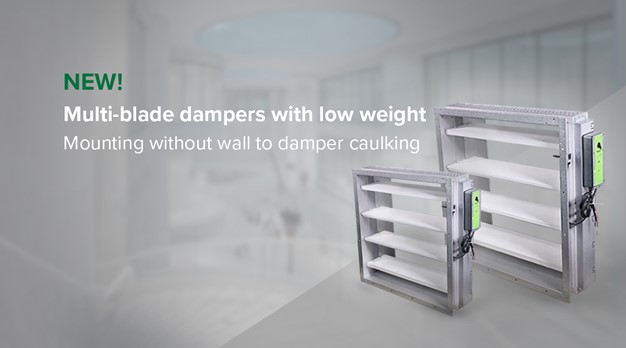

Let us present our new fire-/ smoke dampers EKO-RBG1 and EKO-RBG1-R (regulating actuators). These are two unique multi-blade dampers with low weight that can be mounted quickly and easily without wall to damper caulking. The multi-blade dampers are adapted for regulating air flow and provides low pressure drops and sound power levels.Features
- Multi-blade damper with low weight
- New unique patent applied construction
- Easy installation
- Mounting without wall to damper caulking
- The multi-blade damper provides low pressure drops and sound power levels
- Thanks to the multi-blade system, the damper is very suitable to use with regulating actuators. (See also EKO-RBG1-R)
Description
Fire-/ smoke damper EKO-RBG1 is a P- and CE approved multi-blade damper intended for fire sectioning or as protection against the spread of fire and fire gas in ventilation systems. The damper is equipped with factory-fitted electrical actuator with spring return, end position contacts and thermal sensor. EKO-RBG1 is manufactured in sizes from 200x200 mm to 800x800 mm, in steps of 50 mm. The standard EKO-RBG1 is manufactured of galvanized sheet steel (C2) with damper blades and casing of !re resistant material. Alternatively, the damper can be made of aluzinc (C4) Magnelis (C5) or stainless steel EN 1.4404.
Easy installation
Each damper is provided with a QR-Code to easily and quickly access installation, operation and maintenance instructions. The multi-blade damper is easily mounted without wall to damper caulking
Read more about the products below
EKO-RBG1
EKO-RBG1-R
